Proscan Con1 är en rundstrålande 5G-antenn som ger optimal täckning och stabil anslutning. Den är kompatibel med äldre och nyare nätverk, inklusive 2G, 3G, 4G och WiFi. Antennen kan monteras på vägg eller maströr och levereras med tillbehör för båda alternativen.
The sequel to the wildly popular XPOL-A0002 is finally here! This antenna has better gain on existing 3G/4G bands and also supports the new 5G frequencies.
Poynting XPOL-2-5G is the third generation of this very popular directional antenna for both 4G and 5G. Better amplification on the 4G bands and support for the new 5G bands.
The antenna has a completely new interior based on Artificial Magnetic Conductors (AMC) and a completely new type of antenna radiator. This provides higher and more even amplification across all bands as well as a better and more efficient directional effect. In addition, the new AMC technology and the new antenna radiator provide higher efficiency and less loss (lower VSWR value) than previous antennas.
It provides 2-3dB better gain over all bands compared to standard XPOL-2- V2.
The XPOL-2-5G antenna includes the new 3400-3800 MHz bands and is suitable for 2G/3G/4G and 5G.
The antenna is 2x2 MIMO with cross-polarized elements. 5 meter twin cable is firmly mounted in the antenna.
2-3dB higher gain over all bands compared to previous version
New 3400MHz-3800MHz, 5G band with 11dBi gain
Consistent broadband performance
Cross-polarized 2x2 MIMO antenna
Wall or pole mounting
Light and robust
Weatherproof and waterproof (IP65)
Finished package for those who want a stable 3G/4G network with the option to connect to an existing WiFi network.
This package is for those who are looking for a smooth installation and quality. Teltonika RUTX11 has many configuration possibilities such as OpenVPN and Site-To-Site VPN, Support for DDNS and Ping reboot. All the functions required for you to be able to take the system with you when you have to work out in the field or just want to enjoy some nice series on the plate.
In this package, the antenna already has 2 meters of antenna cable mounted directly on the element.
To install this package, you need to do the following:
Check the roof and see where the best mounting location for the antenna is, keep in mind that the antenna wants to be as free as possible.
Try to mount the router so that it is not in the way or will be damaged.
Configuration is handled via IP, the IP address is on the modem.
To connect to an existing network, browse to RUTX11 and scan for networks, click on the network you want to connect to and enter the password.
Panorama GPSD is a compact vehicle antenna (shark fin) that includes 2x2 MiMo function for 5G/4G/3G, 4x4 MiMo WiFi 2.4/5GHz, an active antenna for GPS. Additionally, there is an integrated mount for an external rod antenna that can support a range of VHF, UHF or 700/800MHz antennas.
This model also supports 4x4 MiMo WiFi for 2.4/5GHz.
GPSD is designed for multiple antenna functions while being discreet. Suitable areas of use are in security, transport and industrial applications. It is cost-effective and robust as it requires only one hole for mounting. You increase the resale value, reduce the installation time and lower the cost.
We highly recommend this to anyone who has the opportunity to mount it.
Very popular and proven antenna for all mobile broadband networks
Gives many a night and day sensation in connection and signal quality. If you have the opportunity to mount this antenna, it is a given choice - this is undoubtedly one of our best antennas.
This is a genuine multiband antenna for both 4G 800MHz, GSM 900, GSM 1800, 3G 2100, 4G 2600 and 5G 3800mhz. Fits frequency bands 698 - 960 MHz, 1710 - 2700 MHz and 3400 - 3800 MHz. In plain language, this means that this antenna fits all the Swedish 3G, 4G and even 5G networks that are in use today and in the planned future, no exceptions.
The antenna cable that comes with it is 7m long. For suitable extension cables, see the accessories tab above the product text, or contact us if you would like a tailored cable length according to your needs.
No adapter is needed for e.g. Huawei B618, B715, B525, B315, B593s, E5186s D-Link DWR-923, DWR-921 or ZTE MF28G.
This adapter fits e.g. Huawei B618, E392, E398 and ZTE MF821D.
This adapter fits e.g. Huawei E3276, E3372, E3272
What to expect
If you don't get reception indoors but can get reception outdoors, a roof-mounted directional antenna is probably the only solution. This installation can give you 3-5 extra bars in reception which in turn means a real speed increase.

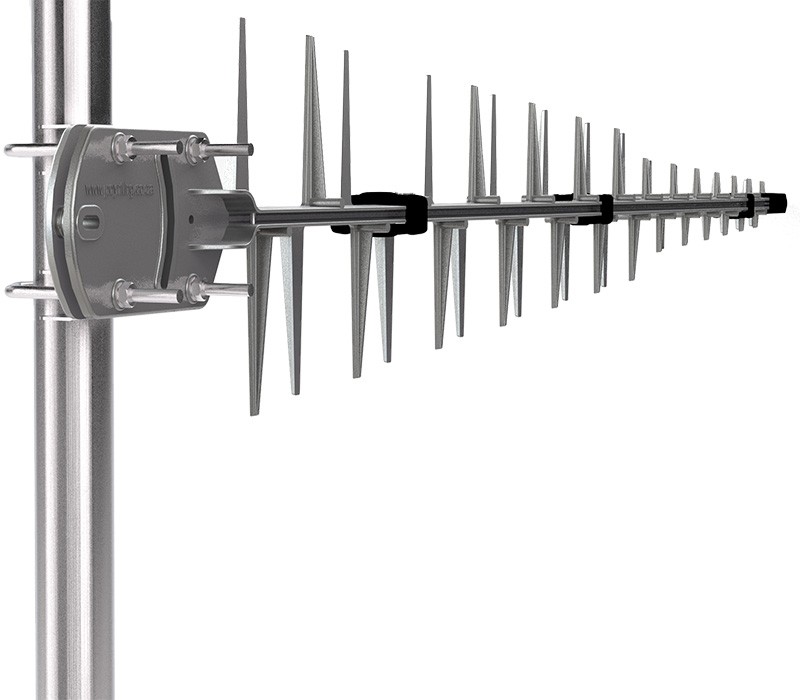

Very stable antenna in cast aluminum
Built to handle all kinds of weather and winds. The antenna is delivered with a bracket for the antenna tube, perfect for attaching to, for example, the existing tube for the TV antenna or mounted on a house wall. The high location above the roof ridge gives a much stronger signal than a location at a lower level. The antenna has a 7 meter Low Loss cable with SMA male. The antenna cable can be extended as needed, but try to keep the cable as short as possible for best effect.
Install 2 directional antennas for MiMo reception
An installation with 2 directional antennas is usually called MiMo setup. It is of course fine to put the antennas above/underneath each other on the same mast tube, but if you want to get the most out of your antennas, we recommend that you use a dedicated MiMo mount. We essentially have two different brackets for this
Good bracket
BRKT-030 - bracket for one vertical/one horizontal antenna
Best bracket
BRKT-033 - bracket for 45 degree MiMo installation
Important information regarding installation of directional antennas
Your 3G/4G USB adapter or router takes up to 1 minute to show that the signal strength has changed. Therefore, it is important that you take your time to set the right direction. Turn 10 degrees, wait up to a minute, check signal strength, turn 10 degrees, etc. The best thing is to measure the speed while you are installing, but do not hold the antenna but your hand.
Your operators can give out position to your nearest base station so that you can get a direction to go. If you feel unsure about how to install your directional antenna or need help aligning it once you have installed it, we are happy to help by email or phone!
Suitable for products such as Huawei B618, B525, B315, E5186s, Huawei B593s, Huawei E5172, D-Link DWR-923, D-Link DWR-921 or other routers with SMA input for external antenna.
Panorama rugged vehicle/M2M antenna for 5G/4G/3G and 2G/GSM. Supplied with removable bracket, 5 meter antenna cable and SMA male connection. The antenna has a built-in ground plane and fits therefore on all surfaces. Gain 3-5dBi depending on frequency. Frequency range 617-960 and 1710-6000MHz. Suitable for all 5G/4G/3G and 2G/GSM as well as WiMax frequencies. Cable length 5 meters and connection SMA male. The antenna is 48 mm in diameter and 82 mm high. 13 mm long threaded bushing with 14 mm diameter and nut. The bottom plate is equipped with double-sided tape. Working temperature -40 to +80°C, IP65.
Antenn Digi 14 LTE700 Kanal 21-48 SE/FI
Störningsfri installation från tak till uttag
Skydd mot LTE 700- och 800-signaler
Snabb och enkel installation med förmonterade element
Mekanisk filtrering utan signalförluster
Korrosionsskyddat och väderbeständigt dipolhus
Pålitlig och högkvalitativ antenn som garanterar nöjda slutkunder. Designad för att ta emot DVB-T2 HD-signaler i 470–694 MHz-området.
EGENSKAPER
Typ: Digi 14
Frekvensområde: Band B IV/V UHF
Kanaler: 21-48
Frekvensomfång UHF: 470-694 MHz
LTE-skydd: vid 700 MHz
FÖRSTÄRKNING
Maximal gain: 13.5 dBi
Gain vid 474 MHz (Ch 21): 10.9 dBi
Gain vid 602 MHz (Ch 37): 11.1 dBi
Gain vid 694 MHz (Ch 48): 11.5 dBi
FÖRLUST
Avvisning vid 758 MHz (Ch 56): 3.8 dB
Avvisning vid 788 MHz (Ch 60): 8.3 dB
ELEKTRISKA DATA
Fram- och bakförhållande horisontalt: 23 dB
ANSLUTNINGAR
Anslutningstyp: F-hona
MEKANISKA DATA
Antal element: 14
Vindbelastning: 54 N
Öppningsvinkel horisontalt: ±30 grader
Material: Aluminium
Längd: 1085 mm
Bredd: 480 mm
Panorama GPSD is a compact vehicle antenna (shark fin) that includes 2x2 MiMo function for 5G/4G/3G, 2x2 MiMo WiFi 2.4/5GHz, an active antenna for GPS. Additionally, there is an integrated mount for an external rod antenna that can support a range of VHF, UHF or 700/800MHz antennas.
This model also supports 2x2 MiMo WiFi for 2.4/5GHz.
GPSD is designed for multiple antenna functions while being discreet. Suitable areas of use are in security, transport and industrial applications. It is cost-effective and robust as it requires only one hole for mounting. You increase the resale value, reduce the installation time and lower the cost.
2 190 kr
