The updated Poynting PUCK v2 is a low-profile antenna designed for use in various applications such as IoT/M2M, Smart Metering, Smart Utilities, Marine, and Transport. This antenna offers a wide range of options for MIMO LTE, MIMO WiFi, and GPS/GLONASS in a single housing, while ensuring easy installation with numerous mounting options. Thanks to its advanced design and robust construction, this antenna delivers excellent performance relative to its size and price. This model is a 2-in-1 antenna featuring 2x2 MIMO LTE. The cellular antennas (for 2G/3G/4G and 5G) cover frequencies from 617 MHz to 6000 MHz, including the most popular international LTE bands. Models with WiFi include two separate dual-band elements, providing simultaneous 2.4 GHz and 5-7.2 GHz on each antenna, with support for 802.11n, 802.11ac, and the new 802.11ax with 2x2 MIMO. The Poynting PUCK is E-Mark E1 certified, ground plane independent, IP69K-rated, and can withstand temperatures ranging from -40°C to +80°C. The antenna is available in other variants and offers a wide range of configurations tailored to different needs. The antenna comes with the following mounting options: - Vertical and horizontal mast mount   - Surface mount plate   - Threaded stud mount   - Magnetic mount   - Wall mount   Product paper PDF Manual PDF

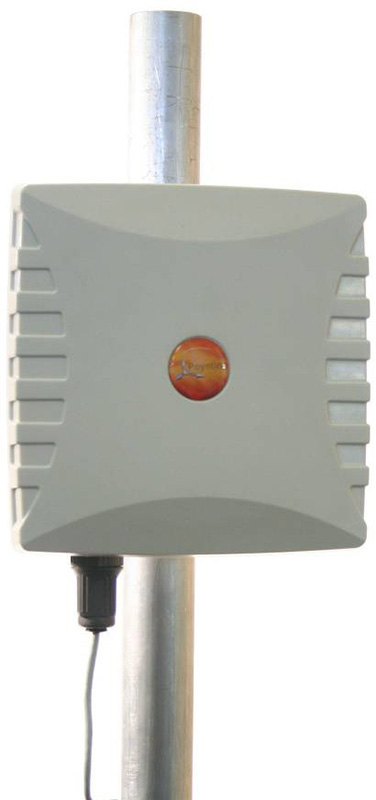

Poynting WLAN-0061 is a new WiFi Dual-Band MIMO directional antenna that can be connected to any access point regardless of WiFi technology. This antenna can solve channel shortage problems and provide ultimate Wi-Fi performance and flexibility. It can be used for point-to-point links where there is an abundance of RF noise or to provide very good WiFi coverage with over large areas. This 4×4 MIMO antenna has 4 different antenna elements in one shell. This means that the antenna can be used in a 2×2, 3×3 and 4×4 configuration. The beam width of 120° ensures good coverage in offices, halls and factories, outdoors etc. For omnidirectional installations with requirements for extra long range and very high capacity, three antennas are used together with three access points for the highest possible capacity. The antenna works in several frequency bands with a maximum gain of 9 dBi at 2.4GHz and 11 dBi at 5GHz respectively, which gives the best performance with reliable connections.< br /> It also covers the 5.8GHz band. The antenna is made of durable ABS plastic that is resistant to acids and other chemicals found in, for example, industrial facilities. The antenna can be opened on the side where the 4x SMA -hen the contacts are placed. You can then feed the cable through the waterproof feed-through, which means you don't need to connect the antenna cable via an extension. This eliminates connection losses and the need for waterproofing in an outdoor installation. This antenna is specially designed to cope with modern high capacity WiFi (802.11ac) where 3x3 or 4x4 MiMo is used but of course also use for 2x2 MiMo or just as a single antenna. It can be used indoors or outdoors and is ideal for outdoor use, in warehouses, production facilities, construction sites or any other environment that requires WiFi connection with very good range and very high speed.
